Saturday, December 28, 2013

YouTube Videos of some awesome IoT and M2M Products

The best way to introduce some one to a newly emerging technology is to show them short (about 2 minutes) but well shot videos of some new products and applications enabled by that technology. Here is a short compilation of awesome videos of awesome Internet of Things (IoT) and Machine to Machine (M2M) products.
IoT and M2M both make use of the same building blocks of technology, the only difference is that IoT products are developed within the context of home use where is M2M refers to products developed for industrial use.

  1. Internet of Things
    1. Nest Thermostat - The learning thermostat - YouTube Video 00:01:12
    2. Nest Protect - Smoke and carbon monoxide alarm - YouTube Video 00:01:37
    3. Tile - The world's largest lost and found - YouTube Video 00:02:00
    4. Egg Minder - The smart egg tray - YouTube Video 00:00:57
    5. Electric IMP -The Egg Minder is based on this - YouTube Video 00:02:00
    6. WunderBar! - Starter kit for the Internet of Things - YouTube Video 00:03:01
  2. M2M
    1. Sierra Wireless AirLink - Intelligent Gateways - YouTube Video 00:03:09
    2. Flutura Decision Sciences and Analytics - YouTube Video 00:02:32
    3. AT&T M2M - Wireless Enterprise Solutions - YouTube Video 00:02:47
    4. Caterpillar - Product Link - YouTube Video 00:02:36
    5. CarIQ - Making Cars Smarter - YouTube Video 00:03:10

Wednesday, December 25, 2013

Decreasing JPEG image file size

So friends/family have asked me time and again regarding this and it had become a major FAQ asked of me.
So here goes.

You can decrease the file size of a JPEG image in two ways: decreasing the image quality and decreasing the resolution. When you get a file whose size you want to decrease, try reducing the quality first, if that brings the file size under the threshold, you are looking for then you are done, if not, try decreasing the resolution.

Theory
The quality setting of JPEG image can vary from 0% (bad quality) to 100% (best quality) and refers to a parameter of the compression algorithm used by JPEG. Needless to say, digital cameras save images at quality setting of very near 100% and decreasing this to 80% will decrease the file size of the image by almost a third. The same process when applied to images that have come from scanners and mobile phone camera does not yield much reduction in file size - maybe those devices have already set the quality level to lower value.
In my experience, I have never been able to visually tell apart the differences between an photograph saved at 100% and the one saved at 80%. Technically, decreasing the image quality will cause the loss of information but you can decrease the quality down to 80% without any perceivable loss - so don't worry about it. (Details about JPEG quality here: wiki | fotoforensics | stackoverflow)

Decreasing the resolution simply refers to decreasing the number of pixels (dots) used to represent the image. Decreasing the number of pixels simply decreases the number of dots in the image, less the number of dot, less the amount of information that the computer has to save in the image file.

Instructions
So here's how to decrease the file size of image:

  1. Download and install IrfanView on your Windows PC. Its just a 2MB download.
  2. Open the JPEG image you want to compress using IrfanView - just double clicking on the image file would do since IrfanView setup would have set itself as the default program for opening JPEG files.
  3. Click on the Save as button (looks like a Floppy) and just save the image as JPEG without changing any setting. IrfanView has its JPEG quality set to 80% by default and this ought to decrease its file size. For reference, a 2592 x 1728 photo taken by my Canon 550D reduced in size from 2.5 megabytes to 702 kilobytes just by opening it in IrfanView and saving it.
    Quality setting in IrfanView
  4. If you want to decrease the file size further, you will have to decrease the resolution. NOTE THAT DECREASING THE RESOLUTION WILL CAUSE LOSS OF CLARITY AS THE NUMBER OF PIXEL REPRESENTING THE IMAGE WILL DECREASE. In case you have a very high resolution image, you can go ahead with this anyway. In IrfanView, press Ctrl+R to bring up the Resize/Resample dialog. Click the button that says "Half" - this will decrease the X and Y resolution to half their value. And then save the file. For reference, a the image in the previous step when resized down from 2592 x 1728 to 1296 x 864 caused the file size to reduce from 702 kilobytes to 223 kilobytes. Overall decreasing the quality to 80% and halving the resolution resulted in decreasing the file size to a tenth of the original size.
    Resize / Resample dialog box in IrfanView
NOTE: You can also set the image to other resolutions, just make sure you leave the "Preserve aspect ratio" box checked. Selecting a particular area of the image in IrfanView and pressing Ctrl+Y will allow you to cut out (crop) those areas of the image that you don't require - This will also help you cut down the image file size. Just remember - less the number of pixel in an image, lower its file size.

Thursday, December 19, 2013

Trouble installing VirtualBox extension pack on Windows 8

So, you have installed VirtualBox successfully on Windows 8 and now you are trying to install the corresponding Extension Pack but it won't install and you keep getting the error message "The installer failed with exit code 1". To fix that just enable Windows 7 compatibility mode for VBoxSVC.exe and VirtualBox.exe - both of these files would be present in C:\Program Files\Oracle\VirtualBox

(Note: The following has been tested with VirtualBox 4.3.6 on Windows 8.Thanks to Kiran Nevaskar for the solution and the screenshots)
  1. Open Windows Explorer and browse to C:\Program Files\Oracle\VirtualBox
  2. Right click VBoxSVC.exe and select Troubleshoot compatibility
  3. Select the options as per the screenshot below to enable compatibility mode for Windows 7
  4. Repeat process for VirtualBox.exe
  5. Try installing the extension pack again (http://download.virtualbox.org/virtualbox/4.3.6/Oracle_VM_VirtualBox_Extension_Pack-4.3.6-91406.vbox-extpack)
1) Browse to the location and right click on VBoxSVC.exe and
select "Troubleshoot Compatibility"

2) Click "Troubleshoot program"

3) Check the option as shown above

4) Select Windows 7

5) Click on "Test the program"

6) Save the settings

7) Click Close. Repeat process for VirtualBox.exe

Monday, December 16, 2013

Video panning across your family tree chart (.jpg to .mp4)

Problem statement:
I have a large panoramic JPEG file (e.g. 8038 x 1145 or more) . How do I generate a video (.avi or preferably .mp4) to zoom in on a particular sub-section of the image (say 1920 x 1080 - size of my Full HD television screen) and slowly pan across the whole image?

I have been using MyHeritage's Family Tree Builder since 2008. I have their premium plus membership. Currently I have 401 individuals cataloged in my family tree.
Beginning last year, we starting organizing an annual family get together of the descendants of Mr Mool Chand Kalra (My mother's father's father) . Genealogically, this basically comprised of 1/4 branch of my extended family, I have 3 other such branches each comprising of the siblings (and their descendants) of my other 3 grandparents. But this particular branch has more individuals (Mr. Mool Chand Kalra had a big family, and his children had equally big ones as well) than the other 3 branches. It is also the best catalog in my family tree.
Last year, during the get together, we had a short presentation where in displayed sub branches of this big branch and showed how the members of the audience were related to each other. MyHeritage's Family Tree Builder allows you to generate awesome family charts. I used this feature to generate family charts for each sub-branch of my family tree. The charting feature allows you to configure lots of features of the chart : ancestors/descendants of a person, horizontal/vertical, hide/display facts, select font sizes, export type as PDF/JPG.

This year, we have decides we aggregated photos from all the members and decided to put it on a pendrive and let a big screen LCD TV loop through the slideshow. The LCD TV will be kept in one corner of the room and people could come take a look at their convenience - forcing them to sit through a long presentation of photos would keep them from catching up with each other and might be counter-productive.

I decided that as a refreshed, I would like to throw in a jpg of the chart as well, but when I generated the chart for my great grandfather, it was huge and when displayed on a screen limited to 1920 x 1080 pixels, you could hardly make out anything. I decided to generate a video panning across the whole family chart 1920x1080 pixels at a time.

Here is what my original looked like (I have set the font size of names set to 1, essentially hiding them to protect the privacy of my relatives) :

The descendants of Mr. Mool Chand Kalra - 8038 x 1145 pixels
Click to view the original.
Here is the Full HD (1920 x 1080) .mp4 video panning across the image
Full HD video panning across the image.
Click to view in Full HD at Youtube

I didn't want to spend a single penny to create the above video and hence choose the freeware path. And to save time, I decided to use tools I was familiar with. Here is how I got it done:
  1. Export the image as JPEG from MyHeritage's Family Tree Builder.
  2. Download Processing 2 from www.processing.org and install it
  3. Execute the following sketch. Make sure your original JPEG is in the same folder as the sketch. The name of the folder in which you place the sketch (.pde file) and the name of the sketch must be the same. Edit the name of the JPEG file in the sketch to match the name of your JPEG file. You may adjust the panning parameters - frames per second and amount of pixels to shift by each time. The panning is preset to move left from center of the image towards left and then back on to the other side of the image. The code displays a FullHD worth region of the image each draw() loop and saves it to disk. At the end you will get a folder full of frames like so:
    JPEG frames
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    import processing.video.*;

    int pan_step_px=2;
    int frame_speed=30;
    int screensize_rows=1080;
    int screensize_cols=1920;


    PImage img;
    int xoffset;
    int yoffset;

    int pan_y_ctr;

    int current_direction;

    boolean sketchFullScreen() {
      return true;
    }

    void setup() {
      smooth();
      frameRate(frame_speed);
      size(screensize_cols, screensize_rows);
      img = loadImage("mool.jpg");
      xoffset=img.width/2;
      yoffset=0;
      current_direction=LEFT;
      pan_y_ctr=0;
    }

    void draw() {
      image(img.get(xoffset, yoffset, 1920, 1080), 0, 0);

      if (current_direction == LEFT) {
        xoffset = xoffset-pan_step_px;
        if (xoffset <0) {
          xoffset = 0;
          pan_y_ctr=0;
          current_direction = DOWN;
        }
      }
      else if (current_direction == DOWN) {
        if (xoffset == 0) {
          yoffset = yoffset+pan_step_px;
          pan_y_ctr += pan_step_px;
          if (yoffset+screensize_rows >= img.height) {
            yoffset = img.height - screensize_rows;
            pan_y_ctr = 0;
            current_direction = RIGHT;
          }
          if (pan_y_ctr >= screensize_rows) {
            pan_y_ctr = 0;
            current_direction = RIGHT;
          }
        }
        else {
          yoffset = yoffset+pan_step_px;
          pan_y_ctr += pan_step_px;
          if (yoffset+screensize_rows >= img.height) {
            yoffset = img.height - screensize_rows;
            pan_y_ctr = 0;
            //Stop
            noLoop();
          }
          if (pan_y_ctr >= screensize_rows) {
            pan_y_ctr = 0;
            current_direction = LEFT;
          }
        }
      }
      else if (current_direction == RIGHT) {
        xoffset = xoffset+pan_step_px;
        if (xoffset+screensize_cols>img.width) {
          xoffset = img.width-screensize_cols;
          pan_y_ctr=0;
          current_direction = DOWN;
        }
      }
      saveFrame("line-######.jpg");
    }

  4. Copy the frame JPEGs to a Linux box. I used Ubuntu 13.10 32 bit running on a VirtualBox VM.
    Making the JPEGs available inside of a Linux VM
  5. Use avconv to assemble the JPEGs (line-xxxxxx.jpg) into a .mp4 file. Use the following command:
    avconv -r 30 -i line-%06d.jpg -qscale 2 -r 30 out.mp4
    Done creating .mp4 using avconv
    -r option is used twice to indicate the input and output frame rate. I have set it to 30 fps because that is what I specified in the Processing sketch. -qscale option specifies the quality of the video between 1 and 31, 1 being the best, 31 being the worst.

    - avconv can be run on Windows too: http://libav.org/download.html
    - Processing 2 is available for Linux too.
    - MyHeritage's Family Tree Builder works only on Windows

Thursday, December 12, 2013

Why do we use 11.0592 MHz with 8051 variants?

  1. Why do we use 11.0592 MHz with MCS-51 variants?
    The original 8051 could be operated at a maximum frequency of 12 MHz (reference).
    And 11.0592 MHz was the frequency very near the maximum operating frequency which was still a multiple of the standard baud rates.
    By the way original 8051s executed a single machine cycle every 12 clocks, so at 12 MHz, the instruction execution frequency was 1 million instructions per second.
  2. What are the standard baud rates?
    Baud rate refers to number of symbols sent through a channel in one second.
    The standard baud rates are 2400, 4800, 9600, 19200, 38400, 57600, 115200 etc.
    Baud rate is also known as symbol rate.
    These are the symbol rates used in all kinds of serial communications.
    The first serial communications were those that were carried over telephones lines.
    (Reference: Bell 202 Modem, Acoustic Coupler)
  3. What is the relation between baud rate and bit rate?
    Baud rate is number of symbols per seconds.
    Bit rate is number of bits per seconds.
    One symbol can represent 1, 2 3 or more bits.
    In BPSK, each symbol represents a single bits (since there are only two symbols), hence in that case baud rate = bits per second.
    In 16QAM, each symbol represent 4 bits. So in that case bitrate is 4 times the baud rate.
  4. Where are these baud rates used?
    These baud rates are used to measure the data rates in telecommunications (wired and wireless).
    But for our discussions, the context is restricted to telecommunications over infrastructure originally intended for audio telephony.
    We operated our computer's UART at these baud rates to communicate with our modems (over RS232) which would then send data over the telephone network at the same speeds to other modems. The data rate used between the computer and the modem and the one used between two modems communication over the telephone network had to be a multiple of the baud rate.
    Since microcontroller were used in modems, the habit of using those baud rates stuck.
  5. Who decided upon these particular baud rates?
    International Telecommunications Union.
    More specifically, ITU Telecommunication Standardization Sector (ITU-T).
    In their V series recommendations - which describe the protocols that govern the telecommunications over telephone network.
  6. What are these ITU V Series recommendations based on?
    The telephone system was designed to carry human voice only.
    Even though humans can hear frequencies in the range of 20 to 20000 hertz, the maximum power density of our speech lies in the range 600 to 3000 hertz. The telephone network carries signals only in this range and attenuates frequencies below 600 hertz and above 3000 hertz. Any technology which tries to make use of the telephone network must be based on these limitation - i.e. much of the power carried by the data signal must lie within this band width.
    So if you actually read the modulation rates (aka baud rates) described in some of the V series recommendations, they are based on using modulation schemes like FSK, PSK, QAM in a channel band limited to 600 to 3000 Hz. This results in possible bitrates of 1200, 2400, 4800, 9600 14400, 28800 and so on. These were the speeds that our modems could support.

    V.22 : 1200 bits per second duplex modem standardized for use in the general switched telephone network and on point-to-point 2-wire leased telephone-type circuits

    V.32 : A family of 2-wire, duplex modems operating at data signalling rates of up to 9600 bit/s for use on the general switched telephone network and on leased telephone-type circuits
  7. Do we still need to use 11.0592 MHz?
    If your microcontroller can operate at higher frequency (like most modern day 8051s), you can use higher frequency like 14.7456 MHz and 22.1184 Mhz.
    If you want save power by operating at a lower frequency, crystals of 7.3728 MHz, 3.6864 MHz and even 1.8432 MHz

    You can also use crystals at frequencies which are not multiples of the baud rate and still get away with operating your microcontroller's UART successfully. Here's how.
  8. Besides Serial Communications, is 11.0592 also good for maintaining time using a real time chip?
    11059200 = 214 x 33 x 52
    So we can use some of these factors to get 86,400 (number of seconds in a day)
    But wait we are, not getting any where. for an RTC, we would like something like a 1 tick per second (1Hz).
    A 15 bit counter operating at 32768 hertz would overflow every one seconds - convenient to make a watch!
    More in depth discussion here.
  9. Are crystals of other frequencies used elsewhere?
    Yes. Have a look at this table.
    Other than the crystals which are multiples of baud rates and the 32.768 kHz one used in watches, the two most notable are the ones used in television circuity for NTSC and PAL signals. Read about colorburst.
  10. I still don't get it - why do we care?
    Because its funny and interesting at the same time.
    I once asked John F. Wakerly over email why TTL logic was based on +5 volts, here is what he had to say (do read the essay that he has linked to) :
This was the voltage chosen for the original TTL family.  I'm not sure of the exact reason.  It's possible that some previous logic families used 5V, but then there would still be the question for that family.  It was undoubtedly a tradeoff between power consumption, reliable switching operation, and noise margins.
Or perhaps it's more like the reason that railroad tracks are separated by the width that they are (see www.naciente.com/essay94.htm).
John

In summary, our decision to use 11.0592 MHz crystals in micro-controllers is indirectly based on the natural frequency of human hearing and speech characteristics - which is in a way similar to the solid rocket boosters having their diameters based on the width of two horses asses.

Wednesday, December 11, 2013

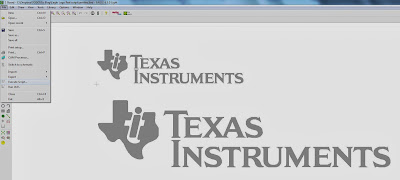

Enlarging polygons (Logos saved as parts) in Cadsoft Eagle

This is for regular users of Cadsoft Eagle - a software package used for designing PCBs.
If you have been using Eagle for as long as I have been using, you most definitely know how to create part libraries, write ULPs and have come up with creative ways to spruce up your PCB's silkscreen (and schematic drawings) with nice artwork - logos, line art, figures etc.

One way you can add artwork to your PCB is by drawing a monochrome figure in paint or some other graphics program and then using the import_bmp.ulp as described in this instructable

But this method imports your art work as a raster of small squares/traces which lacks fidelity - you can note the squares when zoomed in!

Consider this company logo on one of the circuits we designed

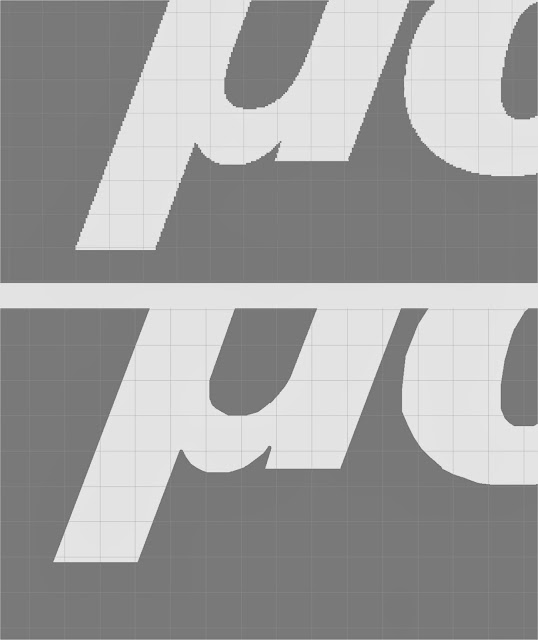

Here are the two versions of the logo. The one on top (raster) was created by importing
the BMP file of the logo using import_bmp.ulp. The one on the bottom (vector) was created
by retracing polygons by hand over the imported raster version of the logo and then deleting
the raster square. The logo on the bottom is smoother.

Usually you would have your company logo in some vector format (PS or CDR or SVG). This vector image of the logo is what you would use in your various branding artifacts and documentation. The reason one wants vector images is that they can be enlarged or shrink without loosing fidelity.

It is only reasonable to want your logo imported as a vector into your PCB's silkscreen.
The only two ways to have a vector image (in case of Eagle, this means a set of polygons) of your company logo are to either re-create the logo by hand in Eagle or if possible import SVG into Eagle using Cruz Monrreal II's ULP.

Hand tracing polygons manually over the imported raster squares and traces
to create high fidelity logos.
5 Polygons forming a logo.
Each polygon has been transposed to a different layer just so that
it appears in a different color. At the end all polygons must reside in
one of the layers used to generate the silkscreen gerber.

Before Cruz Monrreal II developed his SVG import ULP (I haven't tried it yet), what I used to do is to import the logo as BMP into any layer in the part creation mode of Eagle, redraw polygons in a higher layer over the imported raster squares of the logo and save the polygons as a part. I would then export that script, modify the layer number in it and import it back into the schematic layer there by creating a part for the logo.

Once the logo was created using hand traced polygons in Eagle (and if desired saved as a part in one of your libraries), it became difficult to resize (enlarge or shrink). This became a problem when designing PCBs of varying sizes - we needed varying sizes of logos to go on them. The sizes of the polygons which formed the logo was specified in absolute units

Those who use import_bmp.ulp did not suffer from this problem because they could manually adjust the scale factor every time they imported the logo onto a PCB (Refer this image in the procedure described on this page)

So I wanted to be able to modify the size of the. And to do that here are the steps I followed:


  1. Export the logo (all polygons resided in only one of the layer) as an Eagle script (.scr). The .scr file is a text file which contains the coordinates of the vertices which form the polygon.
  2. Use a perl script to search for pattern of numbers specified in the format:
    (2.9396475 4.322355)
    These are the XY coordinates of the vertices forming the polygons. The perl script will multiply the abscissa and ordinates of each of the vertices by a fixed number (the pre-set magnification factor) and generate a new .scr file. Of course its not as simple as it sounds but that' the jist of it. There are a few issues that I had to take care of - read the comments in the perl script below.
  3. This new .scr file which when imported back into eagle would create and enlarged (or shrunk, depending on the pre-set magnification factor) version of the same logo.

Here is the perl script and how I shrunk the Texas Instruments Logo to half its size.

Varying sizes of TI Logo. The logo was first created by hand.
It was then exported as a script (.scr). A perl script then took this .scr file as input
and generated a new .scr file with magnified version of the logo.
The new .scr file was then re-imported back into eagle using "Execute Script"
Here is the perl script. There might still be some bugs lurking around.
I executed this perl script on my windows PC using Strawberry Perl



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
#read each line of file input.txt and find all decimal numbers in each line, multiply it by a constant and save the output in file output.txt

#!/usr/bin/perl

use strict;
use warnings;

open(my $in,  "<",  "input.scr")  or die "Can't open input.scr: $!";
open(my $out, ">",  "output.scr") or die "Can't open output.scr: $!";

my($magfactor)=2;

while (<$in>) # assigns each line in turn to $_
{

	s/[\040](\d+)[\051]/' ' . $1 . '.0)'/ge;		#append .0 to all positive integer abscissae
	s/[\050](\d+)[\040]/'(' . $1 . '.0 '/ge;		#append .0 to all positive integer ordinates

	s/[\040][\055](\d+)[\051]/' -' . $1 . '.0)'/ge;		#append .0 to all negative integer abscissae
	s/[\050][\055](\d+)[\040]/'(-' . $1 . '.0 '/ge;		#append .0 to all negative integer ordinates

	#magnify decimal numbers pairs of all coordinates by the specified factor
	s/[\050](\d+)[.](\d+)[\040](\d+)[.](\d+)[\051]/'(' . eval{eval{"$1.$2"}*$magfactor} . ' ' . eval{eval{"$3.$4"}*$magfactor} . ')'/ge;
	s/[\050][\055](\d+)[.](\d+)[\040](\d+)[.](\d+)[\051]/'(-' . eval{eval{"$1.$2"}*$magfactor} . ' ' . eval{eval{"$3.$4"}*$magfactor} . ')'/ge;
	s/[\050](\d+)[.](\d+)[\040][\055](\d+)[.](\d+)[\051]/'(' . eval{eval{"$1.$2"}*$magfactor} . ' -' . eval{eval{"$3.$4"}*$magfactor} . ')'/ge;
	s/[\050][\055](\d+)[.](\d+)[\040][\055](\d+)[.](\d+)[\051]/'(-' . eval{eval{"$1.$2"}*$magfactor} . ' -' . eval{eval{"$3.$4"}*$magfactor} . ')'/ge;

	#Commandwise replacement: Polygon
	s/Polygon[\040](\d+)[\040]/'Polygon ' . eval{eval{"$1"}*$magfactor} . ' '/ge;	#magnify all positive whole numbers appearing after command
	s/Polygon[\040][\055](\d+)[\040]/'Polygon  -' . eval{eval{"$1"}*$magfactor} . ' '/ge;	#magnify all negative whole numbers appearing after command

	s/Polygon[\040](\d+)[.](\d+)[\040]/'Polygon ' . eval{eval{"$1.$2"}*$magfactor} . ' '/ge;	#magnify all positive decimal numbers appearing after command
	s/Polygon[\040][\055](\d+)[.](\d+)[\040]/'Polygon -' . eval{eval{"$1.$2"}*$magfactor} . ' '/ge;	#magnify all negative decimal numbers appearing after command

	#Commandwise replacement: Wire
	s/Wire[\040](\d+)[\040]/'Wire ' . eval{eval{"$1"}*$magfactor} . ' '/ge;	#magnify all positive whole numbers appearing after command
	s/Wire[\040][\055](\d+)[\040]/'Wire  -' . eval{eval{"$1"}*$magfactor} . ' '/ge;	#magnify all negative whole numbers appearing after command

	s/Wire[\040][\040](\d+)[.](\d+)[\040]/'Wire  ' . eval{eval{"$1.$2"}*$magfactor} . ' '/ge;	#magnify all positive decimal numbers appearing after command
	s/Wire[\040][\040][\055](\d+)[.](\d+)[\040]/'Wire  -' . eval{eval{"$1.$2"}*$magfactor} . ' '/ge;	#magnify all negative decimal numbers appearing after command

	print $out "$_";

}

Files:

  1. enlargelogo.pl - The above perl script
  2. input.scr - Eagle script for creating the Texas Instruments Logo in Eagle in Layer 21 using handcrafted curved polygons.
  3. output.scr - Output when enlargelogo.pl was run on input.scr. This Eagle script would create the Texas Instruments Logo in Layer 21 but of twice the size than the one created by input.scr
The above three files archived in a zip file available here

Monday, November 18, 2013

HelloWorld on TP-LINK TL-WR740N

TP-LINK TL-WR740N WiFi Router

Here's how to:
  1. Flash a TP-LINK TL-WR740N WiFi router with OpenWRT (Wikipedia)
  2. Install toolchain which will run on your x86 Ubuntu computer but compile for the MIPS processor (Atheros AR9330) present inside the TP-LINK TL-WR740N.
  3. Cross-compile a hello world C program on x86.
  4. Transfer the executable to the router and run it.

Flashing the router with OpenWRT



Figuring out the model number
  1. Look on the back side of the router and figure out your model number
  2. Mine was V4.23. I looked up the corresponding entry for that model on the OpenWRT's Wiki Page for TL-WR740N here http://wiki.openwrt.org/toh/tp-link/tl-wr740n under the "Specific Install Notes" section and read:
    "Hardware version 4.23 works perfectly with the unmodified Attitude Adjustment (12.09-beta) generic WR740N v4 image. The best installation method is flashing it through the stock TP-Link web interface."
  3. So I clicked on the image link in that line and downloaded the .bin file:
    openwrt-ar71xx-generic-tl-wr740n-v4-squashfs-factory.bin
  4. Next I connected my WiFi router to my computer using an Ethernet cable and booted up the router. Make sure to disable all other network interfaces (WiFi or Ethernet) except for the wired one between the WiFi Router and your PC.
  5. Use a web browser to login to your routers web management interface and navigate to System Tools  > Firmware Upgrade.
  6. Browse and select the .bin file for the OpenWRT and click on the "Upgrade" button.
  7. Wait for the router to finish the firmware flashing process. You will know when its done when two particular LEDs turn back on: one shaped like the Sun or a cog. And the other one shaped like a computer monitor with a number inside it - the number being the Ethernet port number to which you connected your computer. Once that happens, login again to the web management GUI - this time it will be the OpenWRT one. The default IP address for a router newly flashed with OpenWRT is 192.168.1.1. Login with the default password: "root".


    LEDs which turn back on when the flashing is done
    and the router had completed booting
  8. The router will ask you to set a new password for the "root" user, do so under System > and then reboot using the OpenWRT web interface itself.
    Setting root password for OpenWRT Router
Installing the toolchain and compiling a hello world C program
  1. We need to know which toolchain to download, so before we do that we can SSH (using PuTTY) into the router and confirm some system information.
  2. Using PuTTY connect to your router. Enter the IP address as 192.168.1.1 (default one) or any new one that you might have set.
  3. When the connection succeeds, login as "root" and then enter whatever password you had set for the router in the previous step. You will be presented with a welcome screen:
    OpenWRT Welcome screen
  4. Note from the welcome screen that my OpenWRT distribution version is "ATTITUDE ADJUSTMENT 12.09-beta"
  5. Now you can issue a the following commands to gain some more information regarding the information, these
       cat /proc/cpuinfo
       uname -a
       ls /lib
    These commands will give you the processor architecture and the libc version number incase you decide to use a different GCC toolchain other than the one provided by OpenWRT. My processor has a MIPS Big Endian core (and NOT an ARM core). I know its a MIPS big endian and not MIPS little endian because the cpu model says "MIPS" and not "mipsel". The router has uClibc and not the full-fledged libc on it. The uclibc version is 0.9.33.2. The Linux kernel version on my router is 3.3.8.
    Gathering system information
  6. Now I have enough info to visit http://downloads.openwrt.org and navigate to the SDK corresponding to this version. In my case this was:
    http://downloads.openwrt.org/attitude_adjustment/12.09-beta/ar71xx/generic/OpenWrt-SDK-ar71xx-for-linux-i486-gcc-4.6-linaro_uClibc-0.9.33.2.tar.bz2
    Its 584 MB in size.
  7. I downloaded it to my x86 Ubuntu PC and extracted it to a folder on my hard drive using the command:
    tar xvjf OpenWrt-SDK-ar71xx-for-linux-i486-gcc-4.6-linaro_uClibc-0.9.33.2.tar.bz2 -C ~/openwrt

    Make sure to cd to the folder where you have placed the tar.bz2 file and that the target firectory (~/openwrt in my case) exists before you extract. The files will take up around 2.1 GB of space on your hard drive.
  8. Next I figured out the bin folder were the gcc and ld executables are placed, in my case this was:
    ~/openwrt/OpenWrt-SDK-ar71xx-for-linux-i486-gcc-4.6-linaro_uClibc-0.9.33.2/staging_dir/toolchain-mips_r2_gcc-4.6-linaro_uClibc-0.9.33.2/bin
  9. Two system variables (PATH and STAGING_DIR) must be set before we can use the tools present at this path. Issue the following commands:

    export PATH=~/openwrt/OpenWrt-SDK-ar71xx-for-linux-i486-gcc-4.6-linaro_uClibc-0.9.33.2/staging_dir/toolchain-mips_r2_gcc-4.6-linaro_uClibc-0.9.33.2/bin:$PATH

    export STAGING_DIR=~/openwrt/OpenWrt-SDK-ar71xx-for-linux-i486-gcc-4.6-linaro_uClibc-0.9.33.2/staging_dir
  10. Now you are ready to compile using this new toolchain. Issue the command "gedit hello.c" and type out a hello world program and save it:

    1
    2
    3
    4
    #include<stdio.h>
    main() {
        printf("Hello World\n");
    }

  11. Compile the program by issuing the command:
    mips-openwrt-linux-gcc hello.c -o hello
Copying the executable to the router
Connect using WinSCP to transfer the executable to the router
  1. To copy the "hello" executable onto the router, I moved the file to my Windows PC and used WinSCP to copy it to the home directory on the router. If you want to copy the file to the router from your Linux PC, use any of the methods, described here. Make sure to set the protocol to "SCP". The login name would be "root" and the password the one you set just after flashing the router with OpenWRT.
  2. Once the file is copied to the router, use PuTTY to SSH into the router.
  3. Change the file permissions of "hello" to make it executable by issuing the following command via the PutTTY terminal: chmod +x hello
  4. Now execute the program by issuing the command: ./hello
    Great Success!!
Reference:

  1. Haros's post here: http://www.dd-wrt.com/phpBB2/viewtopic.php?t=61112

Saturday, November 9, 2013

Measuring the hot resistance and cold resistance of Incandescent Bulbs

The Bulbs

So I took 3 bulbs of 40 Watts, 60 Watts and 100 Watts respectively and measured the hot and cold resistances

I used the Philips softtone frosted lamp series.

Price:
40 Watts : Rs 20
60 Watts : Rs 20
100 Watts  : Rs 21

Blub packs - Front

Blub packs - Back

Cold Resistances

The cold resistance readings were as follows:

40 Watts : around 97.6 Ohms
60 Watts : around 71.4 Ohms
100 Watts : around 39.5 Ohms

Measuring Cold resistance of 40W Bulb

Measuring Cold resistance of 60W Bulb

Measuring Cold resistance of 100W Bulb

Hot Resistances (Calculated)

Calculated values of hot resistance can be obtained using the formula: Resistance = (Voltage^2) / Power
In India the AC voltage RMS value is 230 Volts.

So we get the hot resistances as:

40W Bulb : (230*230) / 40 = 1322.5 Ohms
60W Bulb : (230*230) / 60 = 881.67 Ohms
100W Bulb : (230*230) / 100 = 529 Ohms


Hot Resistances (Measured)


To get the actual values of the hot resistance, you have to measure the current flowing through the bulb. In case of AC supply, this can be done using a clamp meter. It measures the current flowing through a wire by sensing the amount of magnetic flux induced around it. This allows one to measure the current flowing through the wire without making physical contact with the wire conductors. The current should be measured only by clamping it around one of the two wires - live or neutral. Each of these wires carry current in opposite directions so if you clamp the meter around both the wires together, the current will read as zero because the magnetic fields induced in the clamp jaw will cancel each other out.

We can assume the AC mains voltage to be constant at 230Vrms but it does vary from place to palace, so I connected a multimeter in parallel with the bulb contacts to measure the voltage too.

The measured values are:

40W Bulb : 242 / 0.15 = 1613.33 Ohms
60W Bulb : 241 / 0.23 = 1052.17 Ohms
100W Bulb : 241 / 0.39 = 617.95 Ohms

Measuring the hot resistance of a 40W Bulb

Measuring the hot resistance of a 60W Bulb

Measuring the hot resistance of a 100W Bulb

Measuring the power directly using a digital energy meter

Now days small digital energy meters are available which can measure power consumed by a single device during a period of time. In India, you can get one from Visha Electronics, Mumbai (http://www.vishaworld.com/). I just wanted to check by how many watts did the value of the actual power consumed vary from the one printed on the box.

40W Bulb : 42.9 Watts
60W Bulb : 64.1 Watts
100W Bulb : 104 Watts

Measuring the power consumed by a 40W Bulb using a digital energy meter

Measuring the power consumed by a 60W Bulb using a digital energy meter

Measuring the power consumed by a 100W Bulb using a digital energy meter


Insides of a digital energy meter






Irfanview : Auto adjust colors

I refuse to use any computer without first installing a copy of IrfanView on it. This light weight multi-format image viewer and converter has become ubiquitous amongst my circle of tech geeks - we can no longer imagine life without it. One of the specific features that I love is "Auto adjust colors".

Consider the following images. The images in the left windows are the originals and the images in the right windows are obtained by applying the "Auto adjust colors".



As you can see, "Auto adjust colors" tweaks the various parameters of the image and brings out the details which remained unseen earlier. One of the major operation that "Auto adjust colors" does is Histogram stretching. Look at the screenshot below to get a better idea of what that is all about:


Histogram Stretching
Here are the original images for reference.





All in all, using this nifty feature of IrfanView makes me feel like I am performing some macho image forensics - like they show on crime series on TV.

PS: I noticed that while uploading images to this blog, blogger/Picasa Web also perform some color enhancements of their own to the images. Due to this the difference between the before and after images embedded above are not as much as what I can see when I open the image files directly on my computer.


Thursday, November 7, 2013

Integrating FlashMagic with Keil uVision4 for P89V51RD2

If you are using P89V51RD2 microcontroller with Keil uVision4 for your project, then you might find it convenient to add FlashMagic as a Tools Menu Option within Keil.
What this will do is allow you to download the program onto P89V51RD2 using a single click from within Keil.
Calling Flash Magic from within Keil to download the program into P89V51RD2 conveniently.
Note the console messages printed in the pane below by FlashMagic's Command Line utility (FM.exe)

Prerequisites:

  1. Keil uVision4 (with the hex output option enabled for your current project)
  2. FlashMagic from http://www.flashmagictool.com/
  3. A target board wired properly to allow DTR to control RESET. If you are using FT232 (USB <> UART) then refer the connection diagram below on how to design your circuit board appropriately.
Enable the "Create HEX File" option for your project in Keil uVision4

Schematic for wiring FT232 (USB <> UART) so as to allow the
computer to use DTR to control the RESET pin of P89V51RD2

Adding FlashMagic to Tools menu:

  1. Click on "Customize Tools" option from the Tools menu.
  2. Add a new tool by clicking on the New button. Type the tool name as "Flash Magic".
  3. Type the following lines in the "Command" and "Arguments" textboxes and click ok.
    Command:
    C:\Program Files (x86)\Flash Magic\fm.exe

    Arguments:
    DEVICE(89V51RD2, 11.0592, 0) ERASE(DEVICE, NOPROTECTISP) HEXFILE(#H, CHECKSUMS, NOFILL, NOPROTECTISP) COM(11, 9600) HARDWARE(BOOTEXEC, 50, 100)
  4. Now, after building your project, you can click on the "Flash Magic" option from the tools menu to download the hex file into the microcontroller

Explanation of FM.exe arguments:

  1. DEVICE(89V51RD2, 11.0592, 0)
    We are using P89V51RD2 with a 11.0592 MHz Crystal. The last zero refers to the flash block we want to program. In case of P89V51RD2, it is "0".
  2. ERASE(DEVICE, NOPROTECTISP)
    We want to erase the whole flash before programming it with the new hex file
  3. HEXFILE(#H, CHECKSUMS, NOFILL, NOPROTECTISP)
    Here we specify the hex file. #H is like a wildcard character which tells Keil to replace it with the actual path of the current project's hex file output.
  4. COM(11, 9600)
    We want to use COM11 at 9600 baud rate. You will have to change the COM port number according to the one on your system
  5. HARDWARE(BOOTEXEC, 50, 100)
    We want tell FM.exe to explicitly use the DTR line to control the RESET of P89V51RD2 and to release it after programming the flash. The values of T1 and T2 are 50 and 100 milliseconds respectively. Refer to the HARDWARE section under the Command Line Interface chapter of FlashMagic User Manual (C:\Program Files (x86)\Flash Magic\Manual.pdf)

Adding to Flash menu instead:

Instead of adding a FlashMagic to the tools menu, you can configure Keil to invoke Flash Magic (FM.exe) whenever the the user selects the Download option from the Flash menu. This is a per project setting which you will have to perform individually for each project. Just enter the same settings as above in the "Configure Flash Tools" dialog box:

Configure Flash Tools

Select "Use External Tool for Flash Programming"

"Download" option in the Flash menu can now be used to invoke FlashMagic

References:

  1. Integrating Flash Magic command line with Keil as ISP
  2. Interfacing Flashmagic with KEIL
  3. 89V51RD2 and FM command line
  4. Flash Magic Manual installed at C:\Program Files (x86)\Flash Magic\Manual.pdf
